OAuth 2.0

Overview

What are we building today?

We do have a Web APP API running in an Azure App Service that is protected with Azure Active Directory (AAD). We want to access this webservice from a PHP website. In our setup the php website runs in a local docker container. The first and foremost goal is to show how we can get hands on the access token from our PHP application.

Request the Index.php through http://localhost:90
Use the OAuth2 library thenetworg/oauth2-azure to request an access token
Authenticate against the app phpDemo in AAD and request access to ressource weatherapi
Return the access token
Return access token. Here you could call the web service with the returned bearer token
Render the token on the website
Use Postman to call the protected webservice

In the following sections contain a step by step guidance how to implement this scenario.

Creating the API-Application

Open Visual Studio 2019 and create a new „ASP.NET Core Web App“

Name: weatherapi
Plattform: .NET Core / ASP.NET Core 3.1
Template: API

In the solution explorer right click the project – Publish…

Azure
Azure App Service (Windows)
Select your subscription

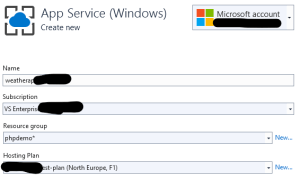

+ Create a new Azure App Service …
- Name: weatherapi (select a unique name)
- Subscription: Your Subscription
- Resource Group: New… (phpdemo)
- Hosting Plan: New… (testplan)

- Click Create to create the Azure Resources
Select the web app and click „Finish“
Click Publish to publish the WebApp

Now you should be able to call your webservice under following URL: https://weatherapi.azurewebsites.net/weatherforecast

Create AAD App for ASP.NET API with weather.read

Open https://portal.azure.com
Navigate to Azure Active Directory / App registrations
+ New registration
- Name: weatherapi
- Account Types: Single Tenant
- Redirect URI: Web – http://localhost:90
- Register
Write down ClientID. In my case it is: b37*****b02
Click on the button „Endpoints“
- Copy the „OpenID Connect metadata document“ Url. In my case: https://login.microsoftonline.com/e2****3d/v2.0/.well-known/openid-configuration where e2***3d is my tenant id.
- Copy the „OAuth 2.0 authorization endpoint (v2)“ https://login.microsoftonline.com/e2**3d/oauth2/v2.0/authorize
- Copy the „OAuth 2.0 token endpoint (v2)“ https://login.microsoftonline.com/e2**3d/oauth2/v2.0/token
Navigate to Manage – Expose an API
- Application ID Uri (Set)
  - You can use the given suggestion or define your own. In my case: api://b37******02
Navigate to Manage – Manifest
- Search for „accessTokenAcceptedVersion“ : null, and replace it with „accessTokenAcceptedVersion“ : 2, This will ensure that we receive OAuth 2.0 tokens! If you examine the JWT-Token in f.e. https://jwt.ms you will find the version set to: „ver“: „2.0“.
- Look out for „appRoles“: []
- Use GuidGen to create a new GUID (f.e. 4B****08)
- Insert the following:

"appRoles": [
{
"allowedMemberTypes": ["Application" ],
"description": "Weather API",
"displayName": "Weather API",
"id" : "4B*************08",
"isEnabled": true,
"lang" : null,
"origin": "Application",
"value": "weather.read"
}
],

Securing the API Application with Easy Auth

Navigate to Azure App Services
Select your weatherapi Application
- Under Settings click Authentication / Authorization
- Turn App Service Authentication ON
  - In the drop down select „Log in with Azure Active Directory“
  - Click „Azure Active Directory“
  - Select Advanced
  - Copy ClientID to Client ID field
  - Copy „OpenID Connect metadata document“ to Issuer Url
  - Click OK
- Save

Take care with the Issuer URL, because your application might break if you use JWT-Tokens with a „wrong“ issuer. JWT-Tokens with Ver 1.0 have a different Issuer than JWT-Tokens Ver 2.0. Open the OpenID Connect Metadata Url in a browser and locate the „issuer“ element. It will be set to:

https://login.microsoftonline.com/<tenant>/v2.0

If you use V1 Tokens you need to set Issue in Easy Auth to

https://login.microsoftonline.com/<tenant>

The „iss“ element in the tokens must match the issuer configured in EasyAuth! Read more on Access Tokens V1/V2 here!

Create AAD App for PHP Application

Open https://portal.azure.com
Navigate to Azure Active Directory / App registrations
+ New registration
- Name: phpdemo
- Account Types: Single Tenant
- Redirect URI: Web – http://localhost:90
- Register
Write down ClientID. In my case it is: c9e*****9ea
Click on the button „Endpoints“
- Copy the „OpenID Connect metadata document“ Url. In my case: https://login.microsoftonline.com/e2****3d/v2.0/.well-known/openid-configuration
Click on Manage – Certificates & secrets
- + New client secret
  - Name: mysecret
  - Expiry: 2 Years
  - Copy down the Secret (we need that later). In my case its: AKX**********
Click on Manager – API Permissions
- + Add a permission
  - Select „My APIs“-Tab
  - Select „weatherapi“
  - Select „Application permissions“
  - Select „weather.read“
  - Add Permissions
- Note the orange exclamation sign! Use „Grant admin consent for…“ button next to „+ Add permission“ and confirm with Yes.

Creating the PHP Application

Since I did not want to install all PHP stuff on my machine I decided to develop my example in a docker container. Thanks to the TruthSeekers who wrote this excellent post on how to do exactly that. You can clone the source code here. After I cloned the git repository I had to adopt my docker-compose.yml file slightly since port 80 / 8080 are already consumed on my machine.

...
ports:
- 90:80
...
ports:
- 9090:8080
...

Then I simply ran

docker-compose up -d

which brought up all containers, including SQL, which we won’t be needing now. Since we need some OAuth-Libraries for PHP, I decided to use the package manager tool composer. I did a quick „docker container list“ to figure out the php container. Then with

docker exec -it php-docker-simple_php_1 bash

I connect to the bash of the running container. Execute the following statements to install composer:

apt-get update
apt-get install zip unzip
Cd ~
php -r "copy('https://getcomposer.org/installer', 'composer-setup.php');"
php -r "if (hash_file('sha384', 'composer-setup.php') === '795f976fe0ebd8b75f26a6dd68f78fd3453ce79f32ecb33e7fd087d39bfeb978342fb73ac986cd4f54edd0dc902601dc') { echo 'Installer verified'; } else { echo 'Installer corrupt'; unlink('composer-setup.php'); } echo PHP_EOL;"
php composer-setup.php
php -r "unlink('composer-setup.php');"

As OAuth2 library I want to use „thenetworg/oauth2-azure“ which can be found here. It is based on the OAuth2 Library „thephpleague/oauth2-client“ which can be found here. Then install this package to the sample which resides in /var/www/html:


cd /var/www/html
php ~/composer.phar require thenetworg/oauth2-azure

Exit to the terminal and start VS-Code in the local directory or any other editor of your choice For our sample we need following information which we collected earlier:

Client ID of the phpdemo app
ClientSecret of the phpdemo app
redirectUri of phpdemo app
aad tenant id
OAuth 2.0 Authorize Url
OAuth 2.0 Token Url
Client ID of the weatherapi app

We need all these values and add them in the following code fragment which initializes the oauth provider for Azure AAD:

$provider = new TheNetworg\OAuth2\Client\Provider\Azure([
'clientId' => 'c9e*****9ea',
'clientSecret' => 'AKX********',
'redirectUri' => 'http://localhost:90',
'tenant' => 'e2*******3d',
'urlAuthorize' => 'https://login.microsoftonline.com/e2*******3d/oauth2/v2.0/authorize',
'urlAccessToken' => 'https://login.microsoftonline.com/e2*******3d/oauth2/v2.0/token',
'urlAPI' => 'b37*******b02',
'scope' => 'b37*******b02/.default'
]);
$provider->defaultEndPointVersion = TheNetworg\OAuth2\Client\Provider\Azure::ENDPOINT_VERSION_2_0;

We can now retrieve the access token with the following code:

$accessToken = $provider->getAccessToken('client_credentials', [
'scope'=> $provider->scope
]);

Here is the complete code of src/index.php to get and display the access token that we can then use to make a request to our api service:


<?php
echo "OAuth Sample<br/>";
/* Make sure we include necessary libraries */
require_once(__DIR__."/vendor/autoload.php");
/* Initialize provider */
$provider = new TheNetworg\OAuth2\Client\Provider\Azure([
    'clientId' => 'c9e*****9ea',
    'clientSecret' => 'AKX********',
    'redirectUri' => 'http://localhost:90',
    'tenant' => 'e2*******3d',
    'urlAuthorize' => 'https://login.microsoftonline.com/e2*******3d/oauth2/v2.0/authorize',
    'urlAccessToken' => 'https://login.microsoftonline.com/e2*******3d/oauth2/v2.0/token',
    'urlAPI' => 'b37*******b02',
    'scope' => 'b37*******b02/.default'
]);
$provider->defaultEndPointVersion = TheNetworg\OAuth2\Client\Provider\Azure::ENDPOINT_VERSION_2_0;

try {
    $accessToken = $provider->getAccessToken('client_credentials', [
        'scope' => $provider->scope
    ]);
} catch (\League\OAuth2\Client\Provider\Exception\IdentityProviderException $e) {
    // Failed to get the access token
    exit($e->getMessage());
}
echo "Access-Token:";
echo $accessToken;

Now we can call http://localhost:90 on our machine and retrieve the JWT Bearer Token. Open Postman and make a get request to:

https://weatherapi.azurewebsites.net/weatherforecast

In the Authorization TAB select type: „Bearer Token“ and paste the access token to the token field. If you hit Send now, you will retrieve the results of the weatherforecast. That’s it. Thanks Andreas
