Cosmos DB RBAC-Access with Managed Identities

The public preview of role-based access control (RBAC) for the Azure Cosmos DB Core (SQL) API was announced yesterday at Microsoft Ignite. This does not only allow us to authenticate our requests with an Azure Active Directory identity based on roles, but also allows to audit the identities which accessed your data.

In this blog post I walk you through a complete example on how you can use Azure Cosmos DB with RBAC and managed identity. We will

  • Create following Azure Resources
    • Cosmos DB Account
    • Log Analytics Account
    • Azure Function App
  • Create a Azure Cosmos DB role with specific access permissions
  • Assign the CosmosDB role to a managed identity
  • Write an Azure Function App to access CosmosDB with managed identity

Create and configure Azure Resources

Open https://portal.azure.com and create a new resource group „cosmosrbac„.

Create a new Azure Cosmos DB Account in that resource group. For this sample I had been using the new serverless option. Use the DataExplorer (under Settings) to create a new Database „demodb“ and a Collection „democol„. I am using „/p“ as a generic partition key. This is especially useful, if you store different kind of documents in your collection which are partitioned differently. Also create a document with the „New document“ button since our permissions will be read only later.

{
"id":"001",
"p":"Test",
"First":"Andreas"
}

Now create a new Log Analytics Workspace and a Azure Function App (serverless) in the resource group „cosmosrbac„. I named those „cosmosrbaclog“ and „cosmosrbacfunc

Now lets configure the Azure Cosmos DB account so that all Dataplane Requests are audited in our Log Analytics Workspace. To do that select your Azure Cosmos DB resource, click on „Diagnostic settings“ in the section „Monitoring„. Add a new diagnostic setting where you just select „DataPlaneRequests“ and your created Log Analytics Workspace. I named that setting „SecurityLog“.

Diagnostic settings for Azure Cosmos DB account

In the portal select your Azure App Function and click on „Identity“ in the section „Settings„. Select „System assigned“ and turn the Status to „On„. Write down the given Object ID which represents the Object ID of the Service Principal in Azure AD. Read more about the managed identity types in the documentation here.

System assigned Identity for Azure Function App

Configure CosmosDB RBAC role and assign to identity

To create a new CosmosDB RBAC role we need to define which permissions the role consists of. This can be done by defining a JSON file. We will be creating a new role „MyReadOnlyRole“ with following permissions:

  • Microsoft.DocumentDB/databaseAccounts/readMetadata
  • Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers/items/read
  • Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers/executeQuery
  • Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers/readChangeFeed

You can find all available Cosmos DB permissions here.

In the Azure Portal open the cloud shell. You can find the cloud shell in the upper bar on the right side. I am using PowerShell version! If you use bash instead you might need to slightly adopt the statements below. To create and assign the role you need the latest Azure Cosmos DB az extension which you can install with this command:

az extension add --name cosmosdb-preview

Then start the nano editor and create a new file „roledefinition.json

nano roledefinition.json

Copy and paste the following json document and save the document by pressing CTRL+Q and selecting Y:

{
    "RoleName": "MyReadOnlyRole",
    "Type": "CustomRole",
    "AssignableScopes": ["/"],
    "Permissions": [{
        "DataActions": [
            "Microsoft.DocumentDB/databaseAccounts/readMetadata",
            "Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers/items/read",
            "Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers/executeQuery",
            "Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers/readChangeFeed"
        ]
    }]
}

Now create the defined role with the following statements. Make sure you replace the values of $resourceGroupName and $accountName with those you selected:

$resourceGroupName='cosmosrbac'
$accountName='cosmosrbac'
az cosmosdb sql role definition create --account-name $accountName --resource-group $resourceGroupName --body roledefinition.json

To later get a list of your defined roles you can issue this statement:

az cosmosdb sql role definition list --account-name $accountName --resource-group $resourceGroupName

Write down the value of „name“ of the new created role definition as we will need it in our next step.

Now we assign this new role to our previously created system managed identity. Replace the $readOnlyRoleDefinitionId value with the value of the role-name (see above) and replace the $principalId value with the Object ID we got earlier when we configured our Azure Function App:

$resourceGroupName='cosmosrbac'
$accountName='cosmosrbac'
$readOnlyRoleDefinitionId = 'name of role definition'
$principalId = 'object id of system managed identity'

az cosmosdb sql role assignment create --account-name $accountName --resource-group $resourceGroupName --scope "/" -p $principalId --role-definition-id $readOnlyRoleDefinitionId

We now can use this system managed identity from Azure Function App to access Cosmos DB with the permissions we defined for that role. To see all the assignments you made you execute this statement:

az cosmosdb sql role assignment list --account-name $accountName --resource-group $resourceGroupName

Access Azure CosmosDB with Azure Function App

Now start Visual Studio 2019 and create a new function app with a HTTP Trigger. Right click the new created project and select „Manage nuget packages…“. Make sure the checkbox „Include prerelease“ is checked! Add the following nuget packages to your solution:

  • Azure.Identity (Version 1.3.0)
  • Microsoft.Azure.Cosmos (Version 3.17.0-preview1)
Functionality is only in the preview of 3.17.0 but not in the final release!

Modify Function1.cs file as following. First replace the using statements with these:

using Azure.Identity;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Azure.Cosmos;
using Microsoft.Azure.WebJobs;
using Microsoft.Azure.WebJobs.Extensions.Http;
using Microsoft.Extensions.Logging;
using Newtonsoft.Json;
using System;
using System.Threading.Tasks;

Add a person class which represents our documents in Azure Cosmos DB

public class Person
{
    public string Id { get; set; }
    public string p { get; set; }
    public string First { get; set; }
}

Inside the class „public static class Function1“ write following two function. One to read an item and another to write an item. Make sure that you replace <yourAccount> with the name of your Azure Cosmos DB account name:

[FunctionName("GetItem")]
public static async Task<IActionResult> GetItem(
  [HttpTrigger(AuthorizationLevel.Function, "get", "post", Route = null)] HttpRequest req,
   ILogger log)
{
  try
    {
      // Since we know that we have a managed identity we instatiate that directly
      // var tokenCredential = new DefaultAzureCredential();
      ManagedIdentityCredential tokenCredential = new ManagedIdentityCredential();
      CosmosClient client = new
       CosmosClient("https://<yourAccount>.documents.azure.com:443/", tokenCredential);
      Container container = client.GetContainer("demodb", "democol");
      ItemResponse<Person> res = await container.ReadItemAsync<Person>("001", new PartitionKey("Test"));
      return new OkObjectResult(JsonConvert.SerializeObject(res.Resource));
    }
    catch (Exception ex)
    {
      return new BadRequestObjectResult(ex.ToString());
    }
}
[FunctionName("CreateItem")]
public static async Task<IActionResult> CreateItem(
    [HttpTrigger(AuthorizationLevel.Function, "get", "post", Route = null)] HttpRequest req,
    ILogger log)
{
  try
  {
    ManagedIdentityCredential tokenCredential = new ManagedIdentityCredential();
    CosmosClient client =
      new CosmosClient("https://<yourAccount>.documents.azure.com:443/", tokenCredential);
    Container container = client.GetContainer("demodb", "democol");
    ItemResponse<Person> res = await container.CreateItemAsync<Person>(
	new Person()
	{ Id = "002",
	  p = "Test",
          First = "Sonja" },
	new PartitionKey("Test"));
    return new OkObjectResult(JsonConvert.SerializeObject(res.Resource));
  }
  catch (Exception ex)
  {
    return new BadRequestObjectResult(ex.ToString());
  }
}

Compile the application and publish it to the Azure function app (Right click project – Publish). Open the Azure portal again and navigate to your Azure function app. Under the section „Function“ select „Functions„. Select each function and aquirce a function URL with the „Get function Url“ buttom in the upper bar.

Azure Functions deployed

Now use a tool like Postman to try to execute your functions. While the GetItem-Function will return a result

GetItem Function returning data from Azure Cosmos DB

the CreateItem-Function will return an RBAC access error.

CreateItem Function returns an error claiming that the principal does not have the required RBAC permissions

Analyzing Loganalytics Azure CosmosDB Dataplane

Navigate now to your Azure Log Analytics Workspace in the Azure Portal. Under the section „General“ select „Logs„. Issuing the following statement will show the failed access to the document:

AzureDiagnostics
| where ResourceProvider == "MICROSOFT.DOCUMENTDB"
  and Category == "DataPlaneRequests"
  and ResourceGroup == "COSMOSRBAC"
  and requestResourceType_s == "Document"
| where OperationName == 'Create'
| summarize by statusCode_s, OperationName, aadPrincipalId_g, aadAppliedRoleAssignmentId_g

Replacing the Operation Name with „Read“ on the other hand will show all 200 success code for that given principal id.

AzureDiagnostics
| where ResourceProvider == "MICROSOFT.DOCUMENTDB"
  and Category == "DataPlaneRequests"
  and ResourceGroup == "COSMOSRBAC"
  and requestResourceType_s == "Document"
| where OperationName == 'Read'
| summarize by statusCode_s, OperationName, aadPrincipalId_g, aadAppliedRoleAssignmentId_g

I hope you enjoyed our tour!

Kind regards
AndiP

Blazor MS-Teams Tab App Series – Part 7

Welcome to the eigth and final post (0-7) of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

In this post we will secure our WeatherForeCast API in the Blazor-Server project and access it the same way we did with Microsoft Graph.

Webservice AAD App Registration

Click +New registration to register a new AAD application. Replace https://demo.ngrok.io with your own domain.

  • Name: BlazorService
  • Account Type: Accounts in any organizational directory (Mulitenant)
  • Redirect Uri: https://demo.ngrok.io

and click Register.

Make sure to copy your Application (Client) ID and store it for later. I am using the following Client-ID throughout the samples which need to be replaced with yours: 38a06d0f-e38d-4e93-be39-aa42d8ebe604

IMPORTANT

Microsoft Teams will only allow URLs that are in the premitted domain. Make sure that you use your NGROK or registered domain here!

Select Expose an API under the Manage section and set an application ID Uri. You can reuse the given UID from the proposed App ID Uri. For example:

  • api://spectologic.eu.ngrok.io/38a06d0f-e38d-4e93-be39-aa42d8ebe604

Now select +Add a scope to add the required "access_as_user" scope:

  • Scope Name : weather_api
  • Who can consent: Admins and Users
  • Provide some titel/text for the information that is displayed when the administrator of a tenant or a user is asked to grant consent.

Finally click Add scope to add the scope. You will get an url that looks like this:

  • api://spectologic.eu.ngrok.io/38a06d0f-e38d-4e93-be39-aa42d8ebe604/weather_api

To directly allow Teams to access we add the well known client IDs of the Microsoft Teams-Applications. There are two of them: Microsoft Teams Web Client and Microsoft Teams Desktop Client

Use the +Add a client application button to add the following client ids. You need to also select the scope "access_as_user" so that the Teams-Apps can access this specific scope!

  • Teams Web Application: 5e3ce6c0-2b1f-4285-8d4b-75ee78787346
  • Teams Mobile/Desktop App: 1fec8e78-bce4-4aaf-ab1b-5451cc387264

Adding the service to the BlazorApp AAD App Registration

Open the BlazorApp AAD application

Click on API permissions under the Manage section to add permissions to access our webservice. We do want to add delegated permissions (permissions in the context of the user). To add the following permission click + Add a permission and select My APIs / BlazorService and select delegated permissions:

  • weather_api

Afer clicking save make sure to click Grant admin consent for … button to grant these permissions within this tenant. So all users of this tenant do not have to explicitly consent to your MS-Teams App.

Securing the WeatherForeCast API

In BlazorTeamApp.Server project add following configuration to the appsettings.json file:

"AzureAd": {
  "Instance": "https://login.microsoftonline.com/",
  "ClientId": "38a06d0f-e38d-4e93-be39-aa42d8ebe604",
  "TenantId": "common",
  "Audience": "api://demo.ngrok.io/38a06d0f-e38d-4e93-be39-aa42d8ebe604",
  "Issuer": "https://sts.windows.net/c409088f-0d18-498f-8ece-8659ea219c20/"
}

Add following nuget package to BlazorTeamApp.Server:

  • Microsoft.AspNetCore.Authentication.AzureAD.UI

In Startup.cs modify the method ConfigureService to add authentication:

public void ConfigureServices(IServiceCollection services)
{
    services.AddAuthentication(sharedOptions =>
    {
        sharedOptions.DefaultScheme = AzureADDefaults.AuthenticationScheme;
    }).AddJwtBearer("AzureAD", options =>
    {
        options.Audience = Configuration.GetValue<string>("AzureAd:Audience");
        options.Authority = Configuration.GetValue<string>("AzureAd:Instance")
            + Configuration.GetValue<string>("AzureAd:TenantId");
        options.TokenValidationParameters = new
            Microsoft.IdentityModel.Tokens.TokenValidationParameters()
            {
                ValidIssuer = Configuration.GetValue<string>(
                    "AzureAd:Issuer"),
                ValidAudience = Configuration.GetValue<string>(
                    "AzureAd:Audience")
            };
    });

    services.AddControllersWithViews();
    services.AddRazorPages();
    services.AddTokenProvider();
}

Also in Startup.cs modify the method Configure(IApplicationBuilder,…:

public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
    ...
    app.UseAuthentication();    // Add this line here
    // app.UseHttpsRedirection();
    app.UseBlazorFrameworkFiles();
    app.UseStaticFiles();
    app.UseRouting();
    app.UseAuthorization();    // Add this line here
    app.UseEndpoints(endpoints =>
    {
      ...

Now use the Authorize attribute to secure our WeatherForeCast controller by adapting Controllers/WeatherForeCastController.cs

...
namespace BlazorTeamApp.Server.Controllers
{
    [Authorize]     // Add this line
    [ApiController]
    [Route("[controller]")]
    public class WeatherForecastController : ControllerBase
    {
        private static readonly string[] Summaries = new[]
...

If you now start your application in Visual Studio and try to access this url:

you should receive a 401 error!

Access the Service from our Blazor Application

Since we have written all the necessary code before we can simply add a new button to our razor page and call our GetServerToken method to get an access token for our weather api:

Add this button to your Tab.razor page

<br  />
<button class="btn btn-light"  @onclick="GetWeatherServerAuthToken">Get Weather Server-Token</button>

Implement the button handler in Tab.razor

private string weatherAuthServerToken = string.Empty;
private async Task GetWeatherServerAuthToken()
{
    try
    {
        authServerToken = await TeamsClient.GetServerToken(authToken,
           new string[1] { "api://spectologic.eu.ngrok.io/38a06d0f-e38d-4e93-be39-aa42d8ebe604/weather_api" });
    }
    catch (Exception ex)
    {
        authServerToken = $"Fehler: {ex.Message}";
    }
}

I leave implementing the call to the webservice with the gained token up to you. It is done the same way as we have called the Microsoft Graph me-Endpoint.

That’s it, have a great day

AndiP

Blazor MS-Teams Tab App Series – Part 6

Welcome to the seventh post (0-6) of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

In this post we will extend our library, so that we are able to create access tokens to access the Microsoft Graph.

Extending our typescript library

We create a new method that will take the ClientAuthToken and scopes of apis we want to access. We obtain the Tenant-ID from the MS-Teams context and send this to our backend (/auth/token) which will use application (client)id and client secret to create an access token:

 GetServerToken(clientSideToken: string, scopes: string[]): Promise<string> {
	try {
		const promise = new Promise<string>((resolve, reject) => {
			microsoftTeams.getContext((context) => {
				fetch('/auth/token', {
					method: 'post',
					headers: {
						'Content-Type': 'application/json'
					},
					body: JSON.stringify({
						'tid': context.tid,
						'token': clientSideToken,
						'scopes': scopes
					}),
					mode: 'cors',
					cache: 'default'
				})
					.then((response) => {
						if (response.ok) {
							return response.json();
						} else {
							reject(response.statusText);
						}
					})
					.then((responseJson) => {
						if (responseJson.error) {
							reject(responseJson.error);
						} else {
							const serverSideToken = responseJson;
							console.log(serverSideToken);
							resolve(serverSideToken);
						}
					});
			});

		});
		return promise;
	}
	catch (err) {
		alert(err.message);
	}
}

Since we do want to call this method from our Blazor components we add additional methods to our JavaScript-Wrapper interface/class:

ITeamsClient

using System.Threading.Tasks;

namespace SpectoLogic.Blazor.MSTeams
{
    public interface ITeamsClient
    {
        ValueTask<string> GetClientToken();
        ValueTask<string> GetServerToken(string clientToken, string[] scopes);
        ValueTask<string> GetUPN();
    }
}

TeamsClient

using Microsoft.JSInterop;
using System.Threading.Tasks;

namespace SpectoLogic.Blazor.MSTeams
{
    public class TeamsClient : ITeamsClient
    {
        public TeamsClient(IJSRuntime jSRuntime)
        {
            _JSRuntime = jSRuntime;
        }
        private readonly IJSRuntime _JSRuntime;

        public ValueTask<string> GetUPN() =>
            _JSRuntime.InvokeAsync<string>(MethodNames.GET_UPN_METHOD);
        public ValueTask<string> GetClientToken() =>
            _JSRuntime.InvokeAsync<string>(MethodNames.GET_CLIENT_TOKEN_METHOD);

        public ValueTask<string> GetServerToken(
            string clientToken, string[] scopes) => _JSRuntime.InvokeAsync<string>(MethodNames.GET_SERVER_TOKEN_METHOD, clientToken, scopes);

        private class MethodNames
        {
            public const string GET_UPN_METHOD
                = "BlazorExtensions.SpectoLogicMSTeams.GetUPN";
            public const string GET_CLIENT_TOKEN_METHOD
                = "BlazorExtensions.SpectoLogicMSTeams.GetClientToken";
            public const string GET_SERVER_TOKEN_METHOD
                = "BlazorExtensions.SpectoLogicMSTeams.GetServerToken";
        }
    }
}

Extend our Blazor Library

Add the following nuget packages to SpectoLogic.Blazor.MSTeams.csproj

  • Microsoft.Extensions.Http
  • System.Text.Json

Create a new subfolder auth within the project and add following classes:

TokenResponse.cs This class reassembles the token reference we get back from the OAuth endpoint.

using System.Text.Json.Serialization;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public class TokenResponse
    {
        [JsonPropertyName("token_type")]
        public string TokenType { get; set; }
        [JsonPropertyName("scope")]
        public string Scope { get; set; }
        [JsonPropertyName("expires_in")]
        public int ExpiresIn { get; set; }
        [JsonPropertyName("ext_expires_in")]
        public int ExtExpiresIn { get; set; }
        [JsonPropertyName("access_token")]
        public string AccessToken { get; set; }
    }
}

TokenError.cs This class reassembles an error that we might get back from the OAuth endpoint. If for example we did not grant consent to our tenant and the user has not granted consent so far we will retrieve an error like ‚invalid_grant‘.

using System.Text.Json.Serialization;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public class TokenError
    {
        /// <summary>
        /// May include things like "invalid_grant"
        /// </summary>
        [JsonPropertyName("error")]
        public string Error { get; set; }
        [JsonPropertyName("error_description")]
        public string Description { get; set; }
        [JsonPropertyName("error_codes")]
        public int[] Codes { get; set; }
        [JsonPropertyName("timestamp")]
        public string Timestamp { get; set; }
        [JsonPropertyName("trace_id")]
        public string TraceId { get; set; }
        [JsonPropertyName("correlation_id")]
        public string CorrelationId { get; set; }
        [JsonPropertyName("error_uri")]
        public string ErrorUri { get; set; }
    }
}

ITokenProvider.cs The interface for our server-side helper class that encapsulates the retrieval of the access token.

using System.Threading.Tasks;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public interface ITokenProvider
    {
        Task<TokenResponse> GetToken(
            string tenantId,
            string token,
            string clientId,
            string clientSecret,
            string[] scopes);
    }
}

ITokenErrorException.cs An exception that will be thrown by the TokenProvider implementation, if we receive an error response from the OAuth Endpoint.

using System;
using System.Runtime.Serialization;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public class TokenErrorException : Exception
    {
        public TokenError TokenError { get; set; }

        public TokenErrorException()
        {
        }

        public TokenErrorException(TokenError error) : base(error.Error)
        {
            TokenError = error;
        }

        public TokenErrorException(TokenError error, Exception innerException) : base(error.Error, innerException)
        {
            TokenError = error;
        }

        protected TokenErrorException(SerializationInfo info, StreamingContext context) : base(info, context)
        {
        }
    }
}

Tokenprovider.cs The implementation of our token provider accessing the Token-Endpoint. Future implementations should use the MSAL-Library from Microsoft, but for illustration purposes this should suffice:

using System.Collections.Generic;
using System.Net.Http;
using System.Text.Json;
using System.Threading.Tasks;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public class TokenProvider : ITokenProvider
    {
        private readonly IHttpClientFactory _clientFactory;

        public TokenProvider(IHttpClientFactory clientFactory)
        {
            _clientFactory = clientFactory;
        }

        public async Task<TokenResponse> GetToken(
            string tenantId,
            string token,
            string clientId,
            string clientSecret,
            string[] scopes)
        {
            string requestUrlString =
            $"https://login.microsoftonline.com/{tenantId}/oauth2/v2.0/token";

            Dictionary<string, string> values = new Dictionary<string, string>
            {
                { "client_id", clientId },
                { "client_secret", clientSecret },
                { "grant_type", "urn:ietf:params:oauth:grant-type:jwt-bearer" },
                { "assertion", token },
                { "requested_token_use", "on_behalf_of" },
                { "scope", string.Join(" ",scopes) }
            };
            FormUrlEncodedContent content = new FormUrlEncodedContent(values);

            HttpClient client = _clientFactory.CreateClient();
            HttpResponseMessage resp = await client.PostAsync(
                requestUrlString, content);

            if (resp.IsSuccessStatusCode)
            {
                string respContent = await resp.Content.ReadAsStringAsync();
                return JsonSerializer.Deserialize<TokenResponse>(respContent);
            }
            else
            {
                string respContent = await resp.Content.ReadAsStringAsync();

                TokenError tokenError =
                    JsonSerializer.Deserialize<TokenError>(respContent);

                throw new TokenErrorException(tokenError);
            }
        }
    }
}

TokenProviderExtensions And finally some class to implement the extension method which can be used by the server project to provide the classes via DI.

using Microsoft.Extensions.DependencyInjection;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public static class TokenProviderExtensions
    {
        public static IServiceCollection AddTokenProvider(
            this IServiceCollection services)
            => services.AddScoped<ITokenProvider, TokenProvider>()
                .AddHttpClient();
    }
}

Use the library in our Blazor-Backend

Now let’s use this library in our Backend to implement the /auth/token service.

First of all add a reference of our razor library to the BlazorTeamTab.Server project.

Extend Startup.cs to call the extension method that will provider the necessary classes via DI:

...
using SpectoLogic.Blazor.MSTeams.Auth; // Add this line
...
services.AddRazorPages();
services.AddTokenProvider(); // Add this line
...

Add a folder Dtos and add the class TokenRequest to it. This reassembles the structure we receive from our typescript implementation:

using System.Text.Json.Serialization;

namespace SpectoLogic.Blazor.MSTeams.Auth
{
    public class TokenRequest
    {
        [JsonPropertyName("tid")]
        public string Tid { get; set; }
        [JsonPropertyName("token")]
        public string Token { get; set; }
        [JsonPropertyName("scopes")]
        public string[] Scopes { get; set; }
    }
}

Under Server/Controllers create a new file AuthController.cs We add ClientID/ClientSecret from our AAD-Application hardcoded! Do NOT do that in production code! Never store secrets in code! Use Azure KeyVault or other more secure locations.

using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;
using SpectoLogic.Blazor.MSTeams.Auth;
using System;
using System.Threading.Tasks;

namespace BlazorTeamApp.Server.Controllers
{
    [ApiController]
    [Route("[controller]/[action]")]
    public class AuthController : ControllerBase
    {
        private readonly ILogger<AuthController> logger;
        private readonly ITokenProvider tokenProvider;

        public AuthController(
            ILogger<AuthController> logger,
            ITokenProvider tokenProvider)
        {
            this.logger = logger;
            this.tokenProvider = tokenProvider;
        }

        [HttpPost]
        [ActionName("token")]
        public async Task<IActionResult> Token(
            [FromBody] TokenRequest tokenrequest)
        {
            string clientId = "e2088d72-79ce-4543-ab3c-0988dfecf2f1";
            // From Step 4
            string clientSecret = "_2xb_7h-P1voxOddv4jzaE8I_l-Tx71BlH";
            // From Step 4
            try
            {
                TokenResponse tokenResponse = await tokenProvider.GetToken(
                        tokenrequest.Tid,
                        tokenrequest.Token,
                        clientId,
                        clientSecret,
                        tokenrequest.Scopes);
                return new JsonResult(tokenResponse.AccessToken);
            }
            catch (TokenErrorException tokenErrorEx)
            {
                return new JsonResult(tokenErrorEx.TokenError);
            }
            catch (Exception)
            {
                throw;
            }
        }
    }
}

Access Microsoft Graph from Blazor-Page

Since we do want to do HTTP-Requests lets add the HTTP-Client in Startup.cs

using SpectoLogic.Blazor.MSTeams;
...
builder.Services.AddMSTeams();
builder.Services.AddHttpClient(); // add this line!

await builder.Build().RunAsync();
...

Now implement Tab.razor page. We inject the HttpClientFactory and add two new methods to handle our two new buttons.

One will receive the server auth token for Microsoft Graph, where the other will use that token to fetch some basic user informations from the Graph.

@page "/tab"
@inject SpectoLogic.Blazor.MSTeams.ITeamsClient TeamsClient;
@inject IHttpClientFactory HttpFactory;

<h1>Counter</h1>

<p>Current count: @currentCount</p>
<p>Current User: @userName</p>
<p>AuthToken: @authToken</p>
<p>Server Token: @authServerToken</p>
<p>User Data: @userData</p>

<button class="btn btn-primary"  @onclick="IncrementCount">Click me</button>
<button class="btn btn-primary"  @onclick="GetUserName">Get UserName</button>
<br  />
<button class="btn btn-light"  @onclick="GetAuthToken">Get Auth-Token</button>
<button class="btn btn-light"  @onclick="GetServerAuthToken">Get Server-Token</button>
<button class="btn btn-light"  @onclick="GetUserData">Get User Data</button>

@code {

    private int currentCount = 0;
    private string userName = string.Empty;

    private void IncrementCount()
    {
        currentCount++;
    }

    private async Task GetUserName()
    {
        userName = await TeamsClient.GetUPN();
    }
    private string authToken = string.Empty;

    private async Task GetAuthToken()
    {
        authToken = await TeamsClient.GetClientToken();
    }

    private string authServerToken = string.Empty;

    private async Task GetServerAuthToken()
    {
        try
        {
            authServerToken = await TeamsClient.GetServerToken(
                authToken,
                new string[1] { "https://graph.microsoft.com/User.Read" });
        }
        catch (Exception ex)
        {
            authServerToken = $"Fehler: {ex.Message}";
        }
    }

    private string userData = string.Empty;
    private async Task GetUserData()
    {
        try
        {
            var client = HttpFactory.CreateClient();
            HttpRequestMessage request = new HttpRequestMessage()
            {
                Method = HttpMethod.Get,
                // https://graph.microsoft.com/v1.0/me/mailFolders('Inbox')/messages?$select=sender,subject&$top=2
                RequestUri = new Uri("https://graph.microsoft.com/v1.0/me/")
            };
            request.Headers.Authorization = new System.Net.Http.Headers.AuthenticationHeaderValue("Bearer", authServerToken);
            authToken = $"Bearer {authServerToken}";
            var response = await client.SendAsync(request);
            userData = await response.Content.ReadAsStringAsync();
        }
        catch (Exception ex)
        {
            userData = $"Fehler: {ex.Message}";
        }
    }
}

In our final post for this series tomorrow, we will secure the Weatherforecast API and reuse what we have learned so far to access the secured service.

That’s it for today! See you tomorrow!

AndiP

Blazor MS-Teams Tab App Series – Part 5

Welcome to the sixth post (0-5) of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

In this post we will put our test code into a library, so that we can reuse our work in future projects. I oriented myself on an existing github project called BlazorExtensions/Storage to build this library.

Building a Razor Library base

Add a new project (of type: Razor Class Library) to your solution. I name it "SpectoLogic.Blazor.MSTeams":

  • .NET Core 3.1
  • No pages/Views

Add a folder Client in the project and add a typescript file named SpectoLogic.Blazor.MSTeams.ts (Feel free to adapt naming to what suits you best).

Add the nuget package Microsoft.TypeScript.MSBuild to the project.

Create a new Typescript JSON Configuration File and configure it like this, since we need promises and AMD (Asynchronous module definition).

{
  "compilerOptions": {
    "noImplicitAny": false,
    "noEmitOnError": true,
    "removeComments": false,
    "sourceMap": true,
    "module": "AMD",
    "target": "ES2016",
    "outDir": "wwwroot"
  },
  "exclude": [
    "node_modules",
    "wwwroot"
  ]
}

If you compile your solution the file SpectoLogic.Blazor.MSTeams.js should be generated and placed in the wwwroot folder.

Unfortunatly you cannot add libman directly to your project. Therefore just copy libman.json from your BlazorTeamApp.Client project and insert it to your new library project.

Change libman.json as so:

{
  "version": "1.0",
  "defaultProvider": "cdnjs",
  "libraries": [

    {
      "provider": "jsdelivr",
      "library": "@microsoft/teams-js@1.8.0",
      "destination": "Client/external/teams"
    }
  ]
}

Let’s implement Spectologic.Blazor.MSTeams.ts! This is basically all the javascript code we wrote before in index.html in a typescript class

import { Context } from "@microsoft/teams-js";

interface SpectoLogicTeamsInterface {
    Initialize(): void;
    GetUPN(): string;
    GetClientToken(): Promise<string>;
}

export class SpectoLogicTeams implements SpectoLogicTeamsInterface {

    private _context: Context;

    Initialize(): void {
        console.log("Initializing teams,...");
        try {
            microsoftTeams.initialize();
            microsoftTeams.getContext((context) => {
                this._context = context;
            });
        }
        catch (err) {
            alert(err.message);
        }
    }

    GetUPN(): string {
        return Object.keys(this._context).length > 0 ? this._context['upn'] : "";
    }

    GetClientToken(): Promise<string> {
        try {
                const promise = new Promise<string>((resolve, reject) => {

                    console.log("1. Get auth token from Microsoft Teams");

                    microsoftTeams.authentication.getAuthToken({
                        successCallback: (result) => {
                            resolve(result);
                        },
                        failureCallback: function (error) {
                            alert(error);
                            reject("Error getting token: " + error);
                        }
                    });

                });
            return promise;
        }
        catch (err) {
            alert(err.message);
        }
    }
}

export const blazorExtensions = 'BlazorExtensions';
// define what this extension adds to the window
// object inside BlazorExtensions
export const extensionObject = {
    SpectoLogicMSTeams: new SpectoLogicTeams()
};

export function Initialize(): void {
    if (typeof window !== 'undefined' && !window[blazorExtensions]) {
        // when the library is loaded in a browser
        // via a <script> element, make the
        // following APIs available in global
        // scope for invocation from JS
        window[blazorExtensions] = {
            ...extensionObject
        };
    }
    else {
        window[blazorExtensions] = {
            ...window[blazorExtensions],
            ...extensionObject
        };
    }
    let extObj: any;
    extObj = window['BlazorExtensions'];
    extObj.SpectoLogicMSTeams.Initialize();
}

Adapting the BlazorTeamApp.Client project

Select the project properties of BlazorTeamApp.Client project and configure the TypeScript Build:

  • ECMA Script version: ECMAScript 2016
  • Module System: AMD

Then add a reference to SpectoLogic.Blazor.MSTeams project.

Add the requireJS library by adding this to the libman.js file:

{
  "provider": "cdnjs",
  "library": "require.js@2.3.6",
  "destination": "wwwroot/scripts/requirejs"
},

Replace the existing BlazorTeamApp.Client/wwwroot/index.html with this code which will initialize requireJS and call main.js:

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no" />
    <title>BlazorTeamApp</title>
    <base href="/" />
    <link href="css/bootstrap/bootstrap.min.css" rel="stylesheet" />
    <link href="css/app.css" rel="stylesheet" />
</head>

<body>
    <app>Loading...</app>

    <div id="blazor-error-ui">
        An unhandled error has occurred.
        <a href="" class="reload">
            Reload
        </a>
        <a class="dismiss">
            🗙
        </a>
    </div>
    <script src="_framework/blazor.webassembly.js">
    </script>
    <!-- Reference to the MS Teams Script added with libman -->

    <script src="scripts/teams/dist/MicrosoftTeams.js" />
    <script data-main="scripts/main" src="scripts/requirejs/require.js"/>
</body>
</html>

Create main.js under **BlazorTeamApp.Client/wwwroot/scripts/":

// Set up any config you need (you might not need this)
requirejs.config({
    basePath: "/scripts",
    paths: {
        "SpectoLogic.Teams": '/_content/SpectoLogic.Blazor.MSTeams/SpectoLogic.Blazor.MSTeams'
    }
}
);

// Tell RequireJS to load your main module (and its dependencies)
require(['require', 'SpectoLogic.Teams'], function (require) {
    var namedModule = require('SpectoLogic.Teams');
    namedModule.Initialize();
});

Implementing the rest of the library

Open SpectoLogic.Blazor.MSTeams.csproj file in an editor and configure the language version to 8.0. Also Add the nuget package Microsoft.JSInterop:

...
<PropertyGroup>
    <TargetFramework>netstandard2.0</TargetFramework>
    <RazorLangVersion>3.0</RazorLangVersion>
    <LangVersion>8.0</LangVersion>
</PropertyGroup>
...
<PackageReference Include="Microsoft.JSInterop" Version="3.1.9" />
...

Now add a new file ITeamsClient.cs and definte it like so:

using System.Threading.Tasks;

namespace SpectoLogic.Blazor.MSTeams
{
    public interface ITeamsClient
    {
        ValueTask<string> GetClientToken();
        ValueTask<string> GetUPN();
    }
}

Implement the interface in a file TeamsClient.cs:

using Microsoft.JSInterop;
using System.Threading.Tasks;

namespace SpectoLogic.Blazor.MSTeams
{
    public class TeamsClient : ITeamsClient
    {
        public TeamsClient(IJSRuntime jSRuntime)
        {
            _JSRuntime = jSRuntime;
        }
        private readonly IJSRuntime _JSRuntime;

        public ValueTask<string> GetUPN() =>
          _JSRuntime.InvokeAsync<string>(MethodNames.GET_UPN_METHOD);
        public ValueTask<string> GetClientToken() =>
          _JSRuntime.InvokeAsync<string>(MethodNames.GET_CLIENT_TOKEN_METHOD);

        private class MethodNames
        {
            public const string GET_UPN_METHOD =
                "BlazorExtensions.SpectoLogicMSTeams.GetUPN";
            public const string GET_CLIENT_TOKEN_METHOD =
                "BlazorExtensions.SpectoLogicMSTeams.GetClientToken";
        }
    }
}

Add an extension class to allow easy injection into the DI by implementing MSTeamsExtensions.cs:

using Microsoft.Extensions.DependencyInjection;

namespace SpectoLogic.Blazor.MSTeams
{
    public static class MSTeamsExtensions
    {
        public static IServiceCollection AddMSTeams
          (this IServiceCollection services)
            => services.AddScoped<ITeamsClient, TeamsClient>();
    }
}

Use library in Blazor-Teams App

Add our new component to BlazorTeamApp.Client/Program.cs by using our extension method:

public class Program
{
  public static async Task Main(string[] args)
  {
    ...
    builder.Services.AddScoped(sp => new HttpClient
      { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });
    builder.Services.AddMSTeams();
    ...
  }
}

and rewrite the Tab.razor page

@page "/tab"
@inject SpectoLogic.Blazor.MSTeams.ITeamsClient TeamsClient;
<h1>Counter</h1>
<p>Current count: @currentCount</p>
<p>Current User: @userName</p>
<p>AuthToken: @authToken</p>
<button class ="btn btn-primary"  @onclick="IncrementCount">Click me</button>
<button class ="btn btn-primary"  @onclick="GetUserName">Get UserName</button>
<br />
<button class="btn btn-light" @onclick="GetAuthToken">Get Auth-Token</button>
@code {
    private int currentCount = 0;
    private string userName = string.Empty;
    private void IncrementCount()
    {
        currentCount++;
    }
    private async Task GetUserName()
    {
        userName = await TeamsClient.GetUPN();
    }
    private string authToken = string.Empty;
    private async Task GetAuthToken()
    {
        authToken = await TeamsClient.GetClientToken();
    }
}

In our next post we will extend this library to finally access MS-Graph!

That’s it for today! See you tomorrow!

AndiP

Blazor MS-Teams Tab App Series – Part 4

Welcome to the fifth post (0-4) of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

Fetching access tokens,…

To create some access tokens we first need to create an Azure Active Directory Application Registration for our Blazor-Tab Application.

Therefore navigate to https://portal.azure.com and select your tenant. Then switch to Azure Active Directory and select App registrations from the left panel. You can navigate there directly by using this link.

AAD App Registration

Click +New registration to register a new AAD application

  • Name: BlazorApp
  • Account Type: Accounts in any organizational directory (Mulitenant)
  • Redirect Uri: Leave that empty for now

and click Register.

Make sure to copy your Application (Client) ID and store it for later. I am using the following Client-ID throughout the samples which need to be replaced with yours: a97275e3-965d-4076-90dd-76cce240e8fb

IMPORTANT

Microsoft Teams will only allow AAD Application Scopes/Redirect URLs that are in the premitted domain. Make sure that you use your NGROK or registered domain here!

Select Expose an API under the Manage section and set an application ID Uri. You can reuse the given UID from the proposed App ID Uri. For example:

  • api://demo.ngrok.io/a97275e3-965d-4076-90dd-76cce240e8fb

Now select +Add a scope to add the required "access_as_user" scope:

  • Scope Name : access_as_user
  • Who can consent: Admins and Users
  • Provide some titel/text for the information that is displayed when the administrator of a tenant or a user is asked to grant consent.

Finally click Add scope to add the scope. You will get an url that looks like this:

  • api://demo.ngrok.io/a97275e3-965d-4076-90dd-76cce240e8fb/access_as_user

To directly allow Teams to access we add the well known client IDs of the Microsoft Teams-Applications. There are two of them: Microsoft Teams Web Client and Microsoft Teams Desktop Client

Use the +Add a client application button to add the following client ids. You need to also select the scope "access_as_user" so that the Teams-Apps can access this specific scope!

  • Teams Web Application: 5e3ce6c0-2b1f-4285-8d4b-75ee78787346
  • Teams Mobile/Desktop App: 1fec8e78-bce4-4aaf-ab1b-5451cc387264

Since we also want to create further access tokens for Microsoft Graph and our own API with this AAD-Application we create a client secret that we will use to create those tokens. Make sure that the client secret is never stored in a client application! It should always be in a trusted environment.

Click on Certificates & Secrets under the Manage section and create a new client secret by selecting +New client secret

Also copy that client secret. I am using this one (it is invalid now, of course):

  • B._12b.spZ391IGzr-Yg0T09Ug9D1erP.f

Click on API permissions under the Manage section to add permissions to access the graph. We do want to add delegated permissions (permissions in the context of the user). Add the following permissions, if not already defined:

  • User.Read
  • email
  • offline_access
  • OpenId
  • profile

In case you are interessted in knowing more about the offline_access permission, you can read this article.

Afer clicking save make sure to click Grant admin consent for … button to grant these permissions within this tenant. So all users of this tenant do not have to explicitly consent to your MS-Teams App.

Finally select Authentication under the Manage section to add a redirect url for access tokens. We will add the server part later!

  • Click +Add a platform and select Web
  • Add a redirect Url to your application: https://demo.ngrok.io/auth-end
  • Scroll down to Implicit grant section and make sure that we can obtain the tokens from the authorization endpoint. Select both options:
    • ID-Token (Checked)
    • Access-Token (Checked)

Update your Teams Application Manifest and redeploy

After we have registered our AAD Application we want to configure our MS-Teams App to use it.

Open your Visual Studio project and click CTRL+Q to get to the general search. Type "teams" to get the option to view the Microsoft Teams Tool Kit.

As before click edit app-package and select development (some uid). Under Domains and permissions set:

  • AAD App ID: previously created app id: a97275e3-965d-4076-90dd-76cce240e8fb
  • Single Sign On: previously created app uri: api://demo.ngrok.io/a97275e3-965d-4076-90dd-76cce240e8fb

Click Update to update the application package.

This will add this section to the manifest:

...
  ],
  "validDomains": [],
  "webApplicationInfo": {
	    "id": "a97275e3-965d-4076-90dd-76cce240e8fb",
	    "resource": "api://demo.ngrok.io/a97275e3-965d-4076-90dd-76cce240e8fb"
  }
}

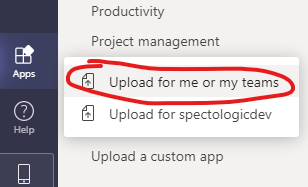

Make sure to use your own AppID/URIs and remove your app from teams and redeploy the app with the new development.zip file!

Getting the Auth-Token

Now let’s write some code to get the Auth-Token that we can later use to get access tokens for MS-Graph and our own API.

First add this javascript code to the index.html page. Again we use the MS-Teams SDK to get the auth token.

function getClientSideToken() {
  try {
          return new Promise((resolve, reject) => {
          console.log("Get auth token from Microsoft Teams");
          microsoftTeams.authentication.getAuthToken({
              successCallback: (result) => {
                  resolve(result);
              },
              failureCallback: function (error) {
                  alert(error);
                  reject("Error getting token: " + error);
              }
          });
      });
  }
  catch (err) {
      alert(err.message);
  }
}

From Blazor we can call this function as we did before by adding a new button and a call to the Javascript Runtime:

...
<p>Current User: @userName</p>
<p>AuthToken: @authToken</p>
...
<button class ="btn btn-primary"  @onclick="IncrementCount">Click me</button>
...
<button class ="btn btn-primary"  @onclick="GetUserName">Get UserName</button>
<br />
<button class="btn btn-light" @onclick="GetAuthToken">Get Auth-Token</button>
	@code {
...
private async Task GetUserName()
{
    userName = await JSRuntime.InvokeAsync<string>("GetUPN");
}
private string authToken = string.Empty;

private async Task GetAuthToken()
{
    authToken = await JSRuntime.InvokeAsync<string>("getClientSideToken");
}
...

Rebuild your application and run it in Visual Studio Debugger. Make sure you have updated your Teams app, then start teams and reload your personal tab. Initialize the Teams-SDK and then try to get the auth token.

Copy the authtoken and paste it to a https://jwt.ms or https://jwt.io to examine the auth token.

That’s it for today! See you tomorrow!

AndiP

Blazor MS-Teams Tab App Series – Part 3

Welcome to the forth post of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

Accessing Teams SDK from Blazor

Before we try to abstract the JavaScript away from our Blazor Application we take a climpse to the JavaScript-World and how we interact from there with our Blazor application.

Before you can access the MS-Teams Context you need to initialize the SDK, which can be simple done by calling the initialize method! The Context contains various key/values where one is the user principal name (upn).

I put these two functionalities in two javascript functions and added this to my index.html page.

Add this code to BlazorTeamApp.Client/wwwroot/index.html:

<script>
var _context;

function InitializeTeamsContext() {
    console.log("InitializeTeamsContext called...");
    try {
      // Initialize SDK
      microsoftTeams.initialize();
      // Fetch MS-Teams Context and store it in the _context variable
      microsoftTeams.getContext((context, error) => {
      _context = context;
    });
  }
  catch (err) {
    alert(err.message);
  }
}

function GetUPN() {
  console.log("GetUPNCalled");
  // Get User Principal Name
  let userName = Object.keys(_context).length > 0 ? _context['upn'] : "";
  return userName;
}
</script>

So how do we call these JavaScript functions from Blazor? By using the JSRuntime class. We inject a instance to our Blazor Page using the @inject command. In the future we want to initialize MS-Teams when the page loads. Right now we require the user to click the buttons in the right order:

Edit BlazorTeamApp.Client/Pages/Tab.razor

@page "/tab"
@inject IJSRuntime JSRuntime;

<h1>Counter</h1>

<p>Current count: @currentCount</p>
<p>Current User: @userName</p>

<button class="btn btn-primary" @onclick="IncrementCount">Click me</button>
<button class="btn btn-primary" @onclick="InitTeams">Init Teams</button>
<button class="btn btn-primary" @onclick="GetUserName">Get UserName</button>

@code {
    private int currentCount = 0;
    private string userName = string.Empty;

    private void IncrementCount()
    {
        currentCount++;
    }

    private async Task InitTeams()
    {
        await JSRuntime.InvokeVoidAsync("InitializeTeamsContext");
    }
    private async Task GetUserName()
    {
        userName = await JSRuntime.InvokeAsync<string>("GetUPN");
    }
}

Hit F5 in Visual Studio to start the application again and switch back to MS-Teams. Hit the refresh button to reload you Team-Tab.

Then click the Init Teams button to initialize the Teams SDK and then Get UserName to display the username of the current logged in user in teams.

Voila! Your first information fetched from MS-Teams. In the next blog post I show you how to get hands on the client auth token that we will use later to get access tokens for Graph and our own services.

That’s it for today! See you tomorrow!

AndiP

Blazor MS-Teams Tab App Series – Part 2

Welcome to the third post (developers count from 0) of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

Configure the Teams Deployment package

Today we’ll have a look at the teams application deployment package and manifest. Each MS-Teams project contains two deployment packages. One for development and one for production. You can configure some basic settings with the corresponding development.json and production.json files:

There are more files in that folder as we can see if we open explorer:

The Microsoft Teams Toolkit extension will generate the zip-files which are the deployment packages. If you open a zip file you will see that it contains a manifest.json file.

Instead of editing these files manually we use the integrated Manifest Editor that come with the Teams Toolkit extension. It can be easily found by opening the general search in Visual Studio CTRL+Q and typing teams:

Edit app package by selecting the menu "Edit app package":

Then select development! It is necessary that you are logged in to your tenant (Use Welcome Menue and the Button in the upper right). If you do this the first time, the toolkit will generate a unique ID for your teams application.

Unfortunatly when you move your project somewhere else and other constellations i have not figured out yet it can happen that it cannot find your deployment package and you end up with this weird error message:

What now, you might ask? Well, I solved it by removing the GUID from the development.json file. No worries you won’t loose anything aside of your UID:

{
  "baseUrl0": "https://localhost:44310",
  "version": "1.0.0",
  "appname": "BlazorTab",
  "fullappname": "BlazorTab",
  "teamsAppId": "3bffcaf5-3c25-48a6-9128-7be501f5516e" // <--- Remove this value
}
{
  "baseUrl0": "https://localhost:44310",
  "version": "1.0.0",
  "appname": "BlazorTab",
  "fullappname": "BlazorTab",
  "teamsAppId": ""
}

Then try to edit the manifest again. MS Teams Toolkit will now generate a new UID and you should be good to go again. Sometimes the right editor window does not render correctly. Selecting the left topics "App details" & "Tabs" back and forth will fix this.

App details is quite self explanatory and I won’t walk you through that in detail. Just make sure that the URLs are adapted to your ngrok domain.

For example:

Under Capabilities / Tab we configure our TAB application. If you have a TAB that can be added to a team you need to provide a configuration URL where your end users will customize you Teams App for that Team-Channel. Configure a URL there. For example:

By clicking on the … right to the configuration url you can also define the scope of your Teams Tab application and if the configuration is readonly.

Add a many personal tabs as you like. Configure them accordingly. Each tab should have a name and content url. For example:

Microsoft Teams will replace some variables in the content URL. In the example above it will replace {entityid} with "index". You can find a list of supported context keys here.

You could f.e. create multiple tabs with the same content URL but using different EntityIDs.

Deploy to teams (Sideload)

  1. Open the Microsoft Teams Client
  2. In the application bar select Apps and then Upload a custom app (left at the bottom)

Select the file development.zip from your .publish folder, install the application and pin it to your left Teams Taskbar.

Make sure ngrok and your Teams App is running in Visual Studio before you click on you application icon. If you have done everything right, you should now see your /tab razor page within Microsoft Teams.

That’s it for today! See you tomorrow!

AndiP

Blazor MS-Teams Tab App Series – Part 1

Welcome to the second post of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

Today we continue with our base MS-Teams project. Since our service must run on a public available domain I recommend using NGROK (yesterday I learned it is spoken like this: [n g rock] ) which is a tunneling service that offers a public URL that will tunnel a request to your local machine.

An additional benefit is that NGROK also provides a SSL-Endpoint terminating at the tunneling site, so you can easily server HTTPS without worring about certificates.

Warning: If you use the free edition of NGROK your domain name will change every hour or so. Since we will also configure Azure Active Directory Applications in AAD this can be tedious to constantly adapt. I would recommend to buy the base version or to host the application on your domain.

Let’s start! Add a new "Blazor"-Project in Visual Studio to our existing solution:

a. Project-Name: BlazorTeamApp
b. Select "Blazor WebAssembly App"
c. Configure for HTTPS: YES
d. ASP.NET Core hosted: YES

Tab-Route

Next we reuse the Counter.razor page as our first tab page. To name it properly we rename Counter.razor to Tab.razor. Make sure that all your razor pages follow the Pascal naming convention otherwise Visual Studio will complain!

In the file BlazorTeamApp.Client/Pages/Tab.razor replace

  • @page "/counter" with @page "/tab"

Remove Sidebar

Since Teams has it’s own navigation we remove the sidebar by removing following code in the file BlazorTeamApp.Client/Shared/MainLayout.razor:

<div class="sidebar">
    <NavMenu />
</div>

Add the MS-Teams SDK Javascript Library

Right click the project "BlazorTeamApp.Client" and select "Manage Client Side Libraries". Then replace the content of the file libman.json with the following code.

{
  "version": "1.0",
  "defaultProvider": "cdnjs",
  "libraries": [
    {
      "provider": "jsdelivr",
      "library": "@microsoft/teams-js@1.8.0",
      "destination": "wwwroot/scripts/teams"
    }
  ]
}

The folder BlazorTeamApp.Client/wwwroot/scripts/teams should have been created!

Lets add the MicrosoftTeams.js file to the index.html page to have it run at startup!

Edit BlazorTeamApp.Client/wwwroot/index.html

...

    <!--Reference to the MS Teams Script added with libman -->


...

Do not use IIS Express

IIS Express does not allow your site beeing called from outside. So NGROK can not tunnel to a IIS Express hosted site running on an address like "https://localhost:44383/tab&quot;.

Open the project settings of BlazorTeamApp.Server and select the settings for Debug:

  1. Change the profile to "BlazorTeamApp.Server"
  2. Set Launch Browser to: http://localhost:5000

Since we use the NGROK Https Endpoint we remove the HttpsRedirection in Startup.cs:

Comment out the HttpsRedirection in "BlazorTeamAp.Server/Startup.cs":

...
// app.UseHttpsRedirection();
app.UseBlazorFrameworkFiles();
...

Once you have setup NGROK with your account open a terminal window and tunnel port 5000 to your NGROK sub domain. Adapt the region depending on your setup:

	ngrok http -region=eu -hostname=".eu.ngrok.io" 5000

Start the "BlazorTeamApp.Server" (not IIS Express!) in the debugger and validate that you can browse the following urls (replace demo.eu.ngrok.io with your ngrok domain):

Test the TAB and Web API:

That’s it for today! See you tomorrow!

AndiP

Blazor MS-Teams Tab App Series – Part 0

This is the first post of a series that will show you how you can write a Microsoft Teams Application with Blazor Webassembly. This post will guide you to get everything setup to be able to follow along the series.

You will find the complete source code in this github repository. I placed my changes in different branches so you can easily jump in at any time.

First I recommend setting up you own O365 tenant for development, as you might not have administrative priviledges on your production tenant.

  1. Setup your own Office 365 – Development Environment

  2. Navigate to Teams Admin Center, which also can be found in the M365 Admin Center under More/Admin Centers/Teams

    • Under Teams Apps / Manage Apps click on the upper right button Org-wide app settings and make sure to activate "allow interaction with custom apps
    • Unter Teams Apps / Setup policies / Global (Org-wide default) activate the option Upload custom apps and save! This can take up to 24 hours
  3. Enable the Developer Preview in Microsoft Teams Desktop Client

    All the settings in step 1 are required to be completed to be able to see those options!

    • Start TeamsApp and select your profile picture / About / Developer Preview and accept. Then log in again!
  4. Enable Developer Tools in Teams App (requires Developer Preview)

    • Close TeamsApp (Quit in Taskbar!)
    • Restart TeamsApp and Log-In again
    • Open a TAB-Application
    • Right-Click the Taskbar-Icon of Microsoft Teams App / Open Dev Tools (Context Menu)
  5. Install App Studio Teams App

    This teams application can help you craft your application manifest.

    • In Microsoft Teams App click on Apps Icon (Taskbar) then search for App Studio and install.
  6. Take the blue/red pill aka choose between .NET and React

    A MS Teams TAB application is basically a website running within an iframe in Teams. So basically you can write your application in any language and framework. To interact with teams you need to work with the JavaScript API. Microsoft offers extensions for Visual Studio Code and Visual Studio that can ease the setup of your projects. As of today Visual Studio Code creates a React-Template while Visual Studio will create an ASP.NET Core 3.1 application.

    • Visual Studio Code (only React-Template with NodeJS)

      • Add Extension Microsoft Teams Toolkit
    • Visual Studio (.NET Core 3.1)

      • Add Extension Microsoft Teams App After installing the extension you can add a new Microsoft Teams App.

If you want to follow my Step-by-Step Teams-App series please create a new Microsoft Teams App BlazorTab.

    Options:
        -  .NET Framework 4.8 (No worries it creats a .NET Core 3.1 App)
	Capabilities
		- Select TAB
		- Select Both

    Visual Studio will create a new solution with two folders:
    - .publish
    - Tabs (.NET Core App 3.1)

That’s it for today! See you tomorrow!

AndiP
